insertion command

Purpose

insertion is used to generate particles or to define spray nozzles (examples).

Note

This command is supported by Aspherix GPU.

Syntax

insertion keyword value

Keywords

Description

mode

obligatory string; pack or rate_in_region or stream or stream_regionfill or spray_nozzle or laser

particle_distribution

obligatory list; ID of a particle_distribution command to be used for particle insertion

velocity
obligatory if insertion_shape or nozzle_shape are used; three velocity styles are available:
constant vector: velocity vector at insertion [length/time]
uniform mean vector fluctuation vector:
velocity vector and amplitude of uniform velocity at insertion [length/time]
gaussian mean vector fluctuation vector:
velocity vector and standard deviation of Gaussian velocity at insertion [length/time]
default: constant (0, 0, 0); units: [length/time]

General optional keywords

Keywords

Description

id

string; user-assigned name for the command call or laser

insert_every_time
once (indicates that insertion only takes place once after the command
is issued) or time interval between two consecutive insertions
default: once (mode pack), every 1000th timestep (else); range: (0,∞); units: [time]

start_time
time at which insertion should start
default: simulation start time; range: [0,∞); units: [time]

check_overlap
yes or no or legacy or optimized
default: yes, for spray_nozzle no

insertion_attempts
positive integer; maximum number of insertion attempts per particle
default: 1000; range [1,∞); units [-]

all_in
yes or no;
default: yes, for spray_nozzle no

packing_generator
style mode: three modes are available: simple or dense (previously called dense_experimental) or batch
Keywords for mode batch can be found here.
default: style simple

set_particle_property_scalar
property-varname value scalar: prescribing a scalar value for an
existing fix property/atom variable of type scalar
not applicable for mode spray_nozzle

set_particle_property_vector
property-varname random_with_magnitude or value vector:
either setting random_with_magnitude keyword (no value) or prescribing a vector quantity
to an existing fix property/atom variable of type vector
not applicable for mode spray_nozzle

random_distribute
exact or uncorrelated
default: uncorrelated

omega
constant vector: angular velocity at insertion, not applicable for mode spray_nozzle
default: (0, 0, 0); units: [1 / time]

orientation
orientation of non-spherical particles at insertion; three modes
random or template or constant (q1, q2, q3, q4) possible:
random: randomize rotational orientation
template: use orientation from particle template
constant (q1, q2, q3, q4): use constant quaternion for orientation; quaternion (w, x, y, z)
values for constant orientation
default: template; not applicable for mode spray_nozzle

verbose
yes or no;
default: no

compress_tags
yes or no
default: no

seed
seed to initialize the random number generator for the insertion
default: 1; range: prime numbers; units: [-]

save_template_information
yes or no; not applicable for mode spray_nozzle
default: no

disable_few_particles_error
yes or no; not applicable for mode spray_nozzle
default: no;

Mode-specific keywords:

Examples

insertion id ins mode pack particle_distribution pdd1 velocity constant (0, 0, -0.2) &
     region insertion_region target_particle_count_in_region 250

insertion mode stream particle_distribution pdd1 massrate 0.1 velocity constant (0, 0, -1) &
     insertion_shape circle center (0, 0, 0.5) radius 0.1

mesh id insFace material material1 solid no file meshes/insertion_face.stl
insertion mode stream_regionfill insertion_face insFace region reg1 target_mass_region 0.5 &
     particle_distribution pd1 velocity constant ( 0, 0, -1 ) id ins2

insertion mode rate_in_region region insertion_region insert_every_time 1e-2 &
     massrate 6 particle_distribution p1 velocity constant ( -1, 0, -3 ) id i2

insertion mode spray_nozzle particle_distribution sprayDist target_mass 1 massrate 0.1 &
     velocity constant (0.1, 0, -1) nozzle_shape cone outer_cone_angle 90 inner_cone_angle 40 &
     outer_nozzle_radius 3e-2 inner_nozzle_radius 1e-2 center_of_nozzle (-0.2, 0, -0.1)

insertion mode laser id laserDiode particle_distribution laserDist target_particle_count 50 &
     particlerate 5e7 insert_every_time 1e-4 velocity constant (0, 0, -5.) outer_nozzle_radius 5. &
     laser_power 1e12 laser_polarization (0, 0, 1) center_of_nozzle (0., 0., 8.) start_time 0.1

insertion mode pack region reg1 particle_distribution pd1 velocity constant ( 0, 0, -1 ) &
     packing_generator style batch verbose yes seed 1000121 check_overlap yes

insertion mode rate_in_region region reg1 insert_every_time 0.05 particlerate 20 &
     target_particle_count 1000 particle_distribution pd5 velocity constant ( 0, 0, -1 ) &
     id ins5 orientation constant ( 0.70711, 0.70711, 0, 0 ) save_template_information yes

insertion mode rate_in_region region factory insert_every_time 0.005 particlerate 4000 &
     target_particle_count 2 monte_carlo_steps 1000000 particle_distribution p2 &
     velocity constant ( 1, 0, 0 ) id i1 insertion_attempts 10 start_time 0.00005 &
     all_in no orientation constant ( 0.70711, 0, 0.70711, 0 ) disable_few_particles_error yes

insertion mode spray_nozzle id nozzle particle_distribution pds1 massrate 1e-3 velocity constant (0, -10, 0) &
     nozzle_shape cone outer_cone_angle 60 outer_nozzle_radius 0.01 center_of_nozzle ( 0.05, 0.099, 0.05 ) &
     set_particle_property_scalar Temp value 500

Related tutorials and articles:

Description

This command allows to insert particles into a specific region either once or every specific time interval. With the mandatory particle_distribution keyword is used to select a particle_distribution for the inserted particles. Several different insertion modes are available, each of which requires different keywords and attributes. Detailed descriptions of the specific styles can be found in the dedicated sections listed above.

The initial velocity of the particles is defined with the velocity keyword. Three different velocity styles are available: The style constant simply patches a constant velocity to the inserted particles, uniform sets uniformly distributed velocities with mean and amplitude. Finally, the style gaussian sets Gaussian distributed particle velocities with mean and standard deviation. The velocity keyword is mandatory as soon as an insertion_shape or a nozzle_shape is used.

The initial rotational velocity can be defined through the keyword omega with style constant.

The keyword id can be used to assign a specific name to the command. This is of importance if the insertion command will be referenced at a later point (e.g., by disable_command or mark_inserted_particles).

The frequency of the particle insertion can be controlled by the keyword insert_every_time, which defines the time interval between two consecutive insertions. Alternatively, by specifying insert_every_time once, particles are inserted only once. The default value of insertion mode pack is once, for all other modes it is at every 1000th time step. The start_time keyword can be used to set the time at which the insertion starts.

The keyword check_overlap controls if particle overlaps are detected at insertion. Valid options are yes, no, legacy or optimized, where yes = optimized. In legacy mode, the particle bounding sphere is used to determine overlaps. Particularly for elongated particles, this can lead to few insersion. In optimized mode the bounding sphere is replaced by an oriented bounding box. Using check_overlap no can lead to the insertion of overlapping spheres and thus instable simulations. The default value for check_overlap is yes except for insertions in spray_nozzle mode, where no is enforced, independent of the user’s choice.

If the overlap check if performed, the number of insertion attempts per particle and insertion timesteps can be specified via the insertion_attempts keyword.

Warning

If not all particles can be inserted the warning “Particle insertion: Less insertions than requested” will be printed. Note that the algorithm will abort even though there might still be space for smaller particles (if using particles of different radii). Try increasing insertion_attempts or insertion velocity or decreasing your volume fraction / number of particles / mass.

The all_in flag determines if the particle is completely contained in the insertion region (all_in yes) or only the particle center (all_in no). The default value for all_in is yes except for insertions in spray_nozzle mode, where no is enforced, independet of the user’s choice.

The packing_generator keyword allows to switch between the established simple sequential inhibition algorithm (style simple), the parallel batch insertion algorithm (style batch), and the dense packing algorithm by Lozano et al. (style dense (previously called dense_experimental)).

_images/packing_generator_comparison.png

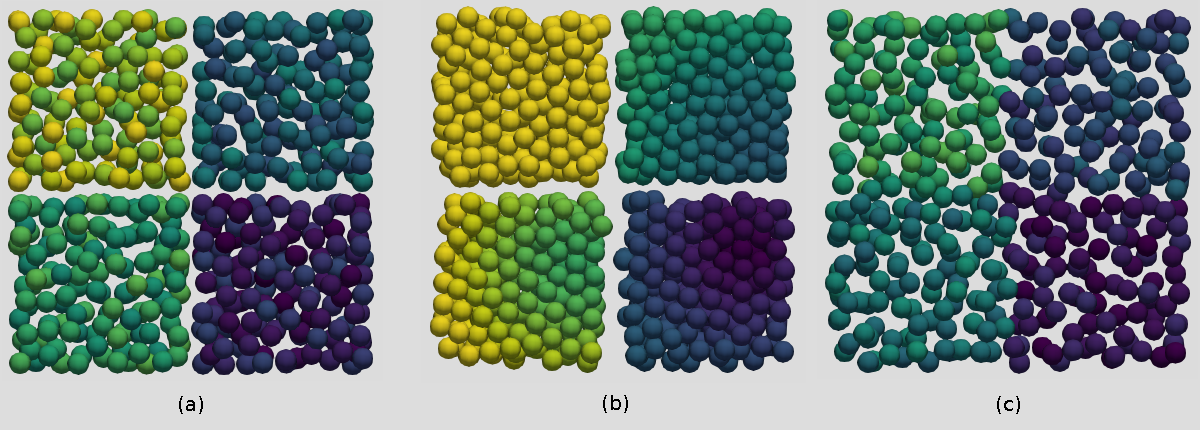

Insertion of a pack of particles on four cores with packing generator of style simple (a), dense (previously called dense_experimental) (b) and batch (c). While style dense is particularly suitable for cases where a dense packing is desired, batch inserts particles also across processor boundaries and avoids gaps in these areas.

The dense (previously called as dense_experimental) algorithm allows to create dense, non-overlapping assemblies with a volume fraction of up to ~0.6 for monodisperse and polydisperse particle distributions, without skewing particle distributions. The dense packing algorithm is experimental, this means that unexpected results can happen, and consistent behaviour across versions is not guaranteed.

A limitation of the dense packing algorithm is that it works best in wide domains. If a domain is too narrow, a warning message like

WARNING: Domain is very narrow (Geometry-Diameter Ratio = 4.518821) - this
can lead to not enough particles being inserted

will appear. The geometry-diameter ratio here is the ratio between the largest particle diameter and the maximum distance from any region boundary.

Note

Non-spherical particles of any type will be treated as spheres with the particle’s bounding sphere radius. Consequently, the algorithm will work for non-spherical particles, but cannot achieve volume fractions as high as for spheres.

In parallel both style simple and style dense can only insert non-overlapping particles by preventing insertion across processor domain borders. At the moment of insertion processor boundaries will therefore be clearly visible as gaps (see image above). The gaps can have an impact on the total number of particles inserted in the domain.

To circumvent this effect, style batch can be used. It inserts particles in parallel, even across processor domain borders. In this style the layout of the insertion does not depend on the number of processors, a serial batch insertion will be identical to the same batch insertion on N processors.

The packing generator style batch uses specific keywords which can be found here, together with a more detailed description of the method.

Please note that style batch cannot be use for insertion regions of style mesh/vtk.

The set_particle_property_scalar keyword can be used to initialize scalar per-particle properties such as temperatures, while the set_particle_property_vector keyword allows to initialize vector per-particle properties such as dipole property.

The keyword random_distribute controls how the number of particles to be inserted is distributed among parallel processors and among the particle templates in the particle distribution. For style exact, the number of particles to be inserted each step is matched exactly. For style uncorrelated, the number of particles to be inserted for each particle template will be rounded in an uncorrelated way, so the total number of inserted particles may vary for each insertion step. However, statistically both ways should produce the same result. Style uncorrelated may be faster in parallel since it does not need global MPI operations. Please note that if the number of particles to be inserted is calculated e.g., from a particle mass to be inserted, the number of particles to be inserted each insertion step will vary by 1, irrespective of the random_distribute settings. This is because the number of particles to be inserted at each step will be a floating point number, and applying a simple floor/ceil rounding operation would lead to a statistical bias.

When inserting non-spherical particles, their orientation at insertion can be controlled with the orientation keyword. When used with keyword random, the initial particle orientation is distributed randomly, keyword template uses the orientation prescribed by the particle template and constant allows define the initial orientation through a quaternion.

The verbose keyword controls whether statistics about particle insertion is output to the screen each time particles are inserted.

If keyword compress_tags is set to yes, then particle IDs are re-assigned after each insertion procedure. The default is no. Activating this option is typically only recommended if some models internally store arrays which have the length defined via the max ID of any particle.

Warning

Setting compress_tags to yes will result in all contact history to be lost at that point in time. External post-processing tools will give wrong results because they typically track particles via their IDs.

The seed keyword can be used to change the initial seed for the random number generator. This can be used to run the same simulation with slightly different insertion positions of the particles and thus analyse the statistical behaviour of the simulation.

The save_template_information is required for an insertion of type stream/predefined as well as when DEM-based drag models are applied. This will save the information from which template a specific particle was generated from.

The disable_few_particles_error can disable an error message if less than 10% of the desired particles were inserted. This is normally an indication that there is an issue with the insertion domain being too small and so should only be enabled if it is clear that the desired behaviour is occurring.

Additional information

Information about this command is written to binary restart files. This means you can restart a simulation while inserting particles, if the restart file was written during the insertion operation.

None of the modify_command options are relevant to this command. A global vector is stored by this command for access by various output commands. The first component of the vector is the number of particles already inserted, the second component is the mass of particles already inserted. To access this vector, the id keyword has to be specified, and the vector can be accessed via f_id. No parameter of this command can be used with the start/stop keywords of the run command.

For stream and spray_nozzle insertions an additional per-particle property is available which contains the following information:

Per-particle release information properties

particle_property

position

description

px_relative

1

relative x position

py_relative

2

relative y position

pz_relative

3

relative z position

elapsed_time

4

time elapsed after release

release_time

5

time of release

mag_v_normal

6

normal velocity magnitude

stream_id

7

id of the originating stream

overlap

8

flag to indicate overlap at insertion

vx

9

velocity in x direction

vy

10

velocity in y direction

vz

11

velocity in z direction

omegax

12

omega in x direction

omegay

13

omega in y direction

omegaz

14

omega in z direction

These values can be output via id_release_fix_insert_stream.particle_property (where the particle_property is a particle property from the table above) or via id_release_fix_insert_stream[N] (where N is the position of the particle property). If this per-particle property is available, it will also be automatically added to the ParaView output.

If any newly created particle overlaps a primitive wall or a surface mesh at insertion (the particle will already experience a force during the first time step) a warning will be shown. For particles originating from a stream or spray_nozzle insertion, the release_fix_insert_stream.overlap per-particle property (or release_fix_insert_stream[8]) flag will be set to 1 if the particle experienced a force during the first time step.

Restrictions

packing_generator style batch cannot be use for insertion regions of style mesh/vtk. The insertion style stream_regionfill cannot be used for multispheres or concave triangulated particles.

Warning

The only insertion modes with full GPU support are mode rate_in_region and mode pack, with block and cylinder regions, and with particle distributions with a single particle template.
